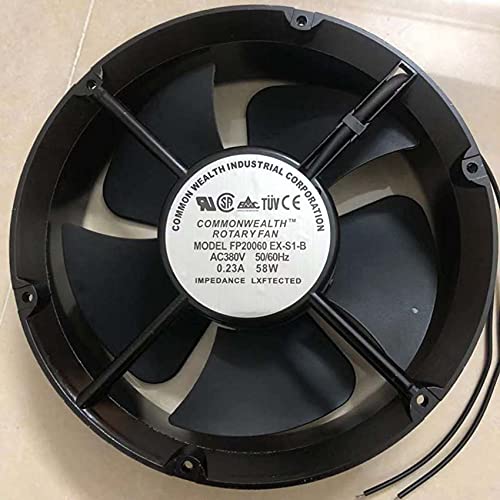

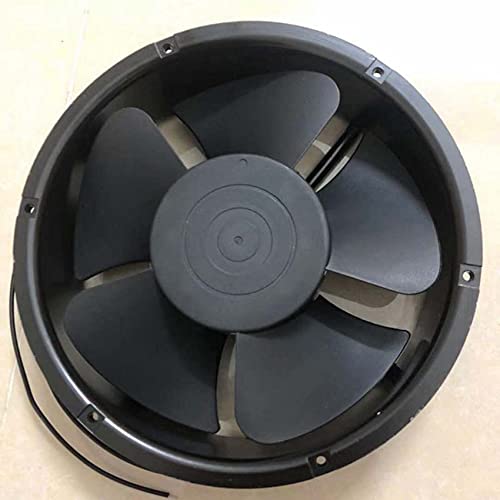

FP-20060EX-S1-B 22060 380V 58W Double Ball Bearing Industrial Cabinet Exhaust Cooling Fan for Server Racks, HVAC Systems & Electrical Enclosures

FP-20060EX-S1-B cabinet fan 22060 380V 58W Double ball exhaust cooling fan Specification size: 220x220x60mm Model number: 22060 Bearing structure: B: BALL (ball bearing) Voltage: AC 380V Work rate: 58 (W) Frequency: 50/60 (Hz) Speed: 2300-2700 (R/min) Air volume: 335\350 (CFM) Noise: 64\66 (dB-A) Weight: 1650 (g) Packing: bulk, no separate box, 10 sets of styrofoam packaging / 1 full box; Frame: black painted aluminum alloy die-casting anti-corrosion and moisture-proof structure; Wind blade: one-time injection molding, PBT+30% glass wire+VO grade flame retardant; Bearing: low-noise imported ball bearings; Insulation: The enameled wire adopts Class B insulation, with a temperature resistance of 120 degrees Celsius; Connection method: lead type Insulation resistance: more than 500 megohms; Withstand voltage: leakage current 0.5mA. Withstand voltage 1500V/1 minute; Operating voltage: 220V (voltage range: 115V～145V) Fan rotation direction: viewed from the direction of the fan blade, it is counterclockwise; Operating environment temperature (℃): -20℃～75℃B: (ball bearing) Life: working environment temperature 40℃ B: (ball bearing) 40000-60000 (hours) It has a long service life and can work continuously for 24 hours.

Model number FP-20060EX-S1-B

Voltage AC 380V , Work rate 58 (W) ,Frequency 50/60 (Hz).

Bearing structure B BALL (ball bearing),Connection method lead type

Speed reference 2300-2700 (R/min) Air volume 335è (CFM).

Life working environment temperature 40℃ B (ball bearing) 40000-60000 (hours)
