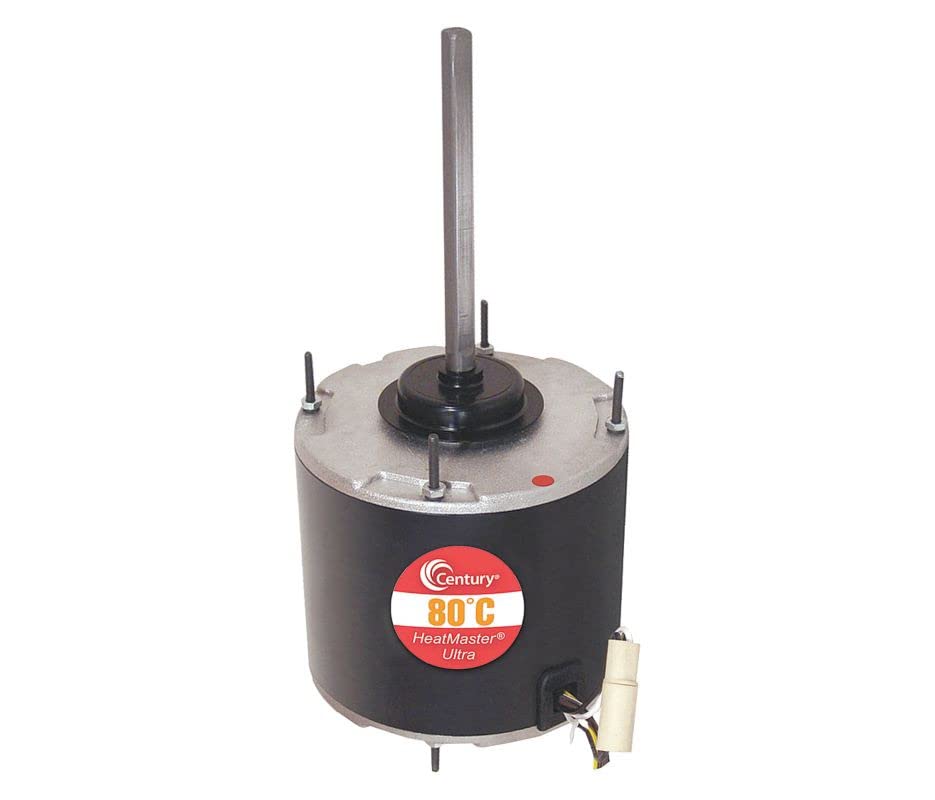

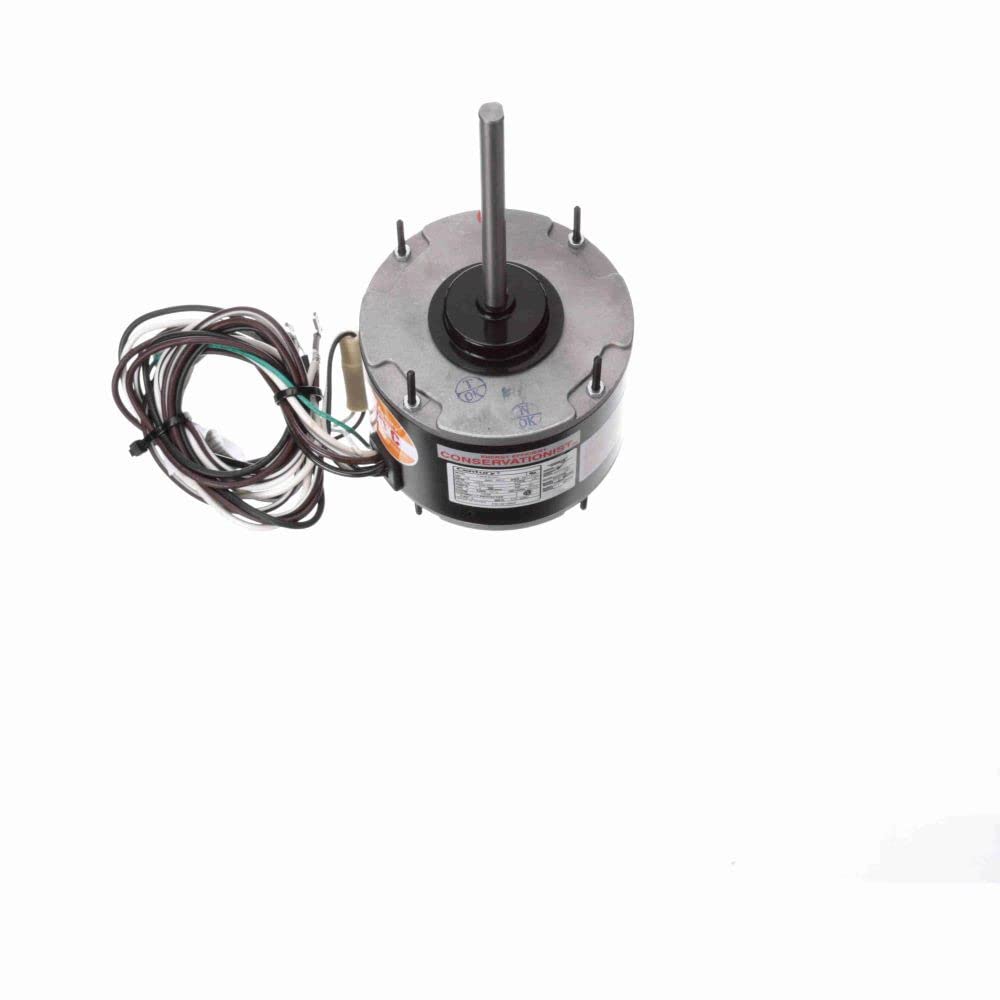

1/2 HP Condenser Fan Motor 1075 RPM 3.8" Shaft - Replacement for HVAC Units, Air Conditioners & Refrigeration Systems - Durable Cooling Fan Motor for Home & Commercial Use

'Condenser Fan Motor,Motor Design Permanent Split Capacitor,Motor Enclosure Design Totally Enclosed Air-Over,1/2 HP,RPM Range 1001-1100,Nameplate RPM 1075,Voltage 208-230,48 Frame,Number of Speeds 1,Overall Length 11-7/8 In.,Shaft Length 6-1/2 In.,Shaft Orientation All Angle,Features Extended Thru-Bolts,Motor Shaft Rotation CW/CCW,Full Load Amps 3.8,Stud Motor Mounting Type,Thermal Protection Auto,Insulation Class F,Service Factor 1.0,Bearings Ball'

Price For Each Motor Enclosure Design Totally Enclosed Air-Over Hz 60 Item Condenser Fan Motor Motor Application HVAC/R No. of Speeds 1 Motor Shaft Rotation CW/CCW Motor Design Permanent Split Capacitor Motor Sub Application Condenser Fan Motor Thermal Protection Auto Phase 1 Motor Service Factor 1.00 Features Extended Thru-Bolts

Standards UL Recognized (E46412), CSA Certified (LR43341) Voltage Compatibility 115/208-230, 208-230, 208-240 Frame 48 Motor Mounting Position All Angle Motor Mounting Type Stud Voltage 208-230 Application Condenser Fan Shaft Length 6-1/2" Bolt Circle Dia. 5-5/32" Overall Length 11-7/8" RPM Range 1001-1100 Max. Ambient Temp. 80 Degrees C Lead Length 48" Length Less Shaft 5-3/8"

Duty Continuous Shaft Dia. 1/2" Capacitor Required 2MDV7 Mounting Stud Pattern 3-5/8" x 3-5/8" Stud Size 8-32 Nameplate RPM 1075 Ins. Class F Stud Quantity 4 HP 1/2 Motor Bearings Ball Body Dia. 5-11/16" Full Load Amps 3.8 Motor Shaft Design Double-Flat Country of Origin (subject to change) Multiple
