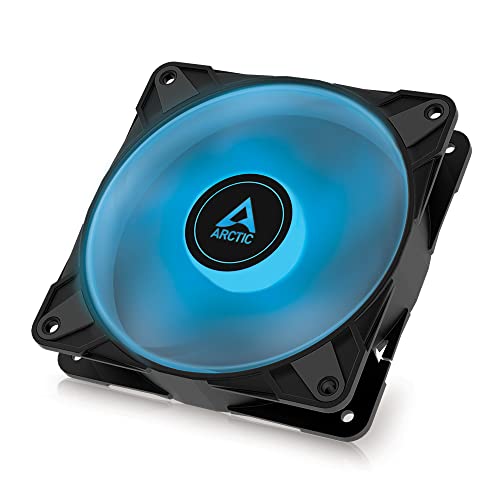

ARCTIC P12 PWM PST RGB - 120mm High Static Pressure PC Case Fan with 200-2000 RPM, 4-Pin RGB LED, Black - Ideal for Gaming PCs, Workstations & PC Cooling Systems

RGB for Full Colour Control The P12 PWM PST RGB has 12 analogue RGB LEDs in the fan barrel. These can be controlled uniformly and are compatible with the common RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the RGB mainboard connection or via an external controller and synchronised with the illumination of other hardware. 0dB Mode - Zero RPM The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time promises maximum performance when required. Optimised for high static pressure The P12 PWM PST RGB operates with a focused airflow and a high static pressure. The fan thus promises extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters. 200 to 2000 RPM controlled via PWM PST With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while promising maximum cooling performance. Technical Specifications Performance Fan Speed: 200-2000 rpm (0 rpm below 5% PWM) Airflow: 48.8 CFM/82.91 m³/h Static Pressure: 1.85 mm H₂O Noise Level: 0.3 Sone Fan and Electric Characteristics Fan Frame: Standard Control Type: PWM PST Connector: 4-Pin-Connector + 4-Pin-Socket Fan Bearing: Fluid Dynamic Bearing Operating Ambient Temperature: 0-40 °C Typical Voltage: 12 V DC Starting Voltage: 5 V Current/Voltage: 0.11 A/12 V Cable Length: 400 mm RGB Specifications LEDs: 12 A-RGB LEDs Connector: 4-Pin 12V-G-R-B Connector Current/Voltage: 0.2 A/12 V Cable: 450 mm cable with 80 mm sharing cable, black Size & Weight Length: 120 mm Width: 120 mm Height: 25 mm Weight: 131 g BioniX P120 P12 PWM PST A-RGB F12 Silent P12 P12 PWM PST RGB P12 Max Size 120 x 120 x 27 mm 120 x 120 x 25 mm 120 x 120 x 25 mm 120 x 120 x 25 mm 120 x 120 x 25 mm 120 x 120 x 25 mm Fan Speed 200–2100 RPM 200–2000 RPM 800 RPM 1800 RPM 200–2000 RPM 200–3300 RPM Airflow 67.56 CFM/114.9 m³/h 48.8 CFM/82.91 m³/h 37 CFM/62.9 m³/h 56.3 CFM/95.65 m³/h 48.8 CFM/82.91 m³/h 81.04 CFM/137.69 m³/h Noise Level 0.45 Sone 0.3 Sone 0.08 Sone 0.3 Sone 0.3 Sone 0.6 Sone Control Type PWM PST PWM PST Fixed Speed Fixed Speed PWM PST Pulse Width Modulation - PWM Bearing Fluid Dynamic Bearing Fluid Dynamic Bearing Fluid Dynamic Bearing Fluid Dynamic Bearing Fluid Dynamic Bearing Dual Ball Bearing Weight 140 g 131 g 107 g 139 g 131 g 184 g Static Pressure 2.75 mm H₂O 1.85 mm H₂O 0.3 mm H₂O 2.2 mm H₂O 1.85 mm H₂O 4.35 mm H₂O

ANALOG RGB ILLUMINATION The 12 RGB LEDs placed along the fan hubr and the transparent rotor with its closed design provide a uniform and rich illumination

EASY TO COMBINE Both the fan and RGB cables have an integrated Y-splitter, making it even easier to retrofit and control additional fans

OPTIMIZED FOR STATIC PRESSURE Thanks to the high static pressure, the fan guarantees efficient cooling even with increased air resistance. Suitable for use on heat sinks& radiators

200-2000 RPM Thanks to 4-pin connector, the RPM can be regulated in a broad spectrum via PWM, noise is kept at minimum while maximum cooling performance is given when needed

SPECIFICATIONS Fan speed 200-2000 RPM; Airflow 48.8 CFM/82.91 m³/h; Static pressure 1.85 mmH2O; Noise level 0.3 Sone; Fan connector 4-pin; LED connector 4-pin
